Full Set of Hydraulic Lines - Audi A4 Cabriolet 1994-1998

Previous
Next
Part Number AUDI_80_HOSE_SET Make Audi A4/Cabriolet 1994-1998

 Full set of upgraded hydraulic lines, manufactured in the USA by Top Hydraulics out of superior hose material, with plated fittings. Burst pressure rating over 23,200 psi.



$1,699.99

1994-1998 Audi A4 (Audi 80) Cabriolet

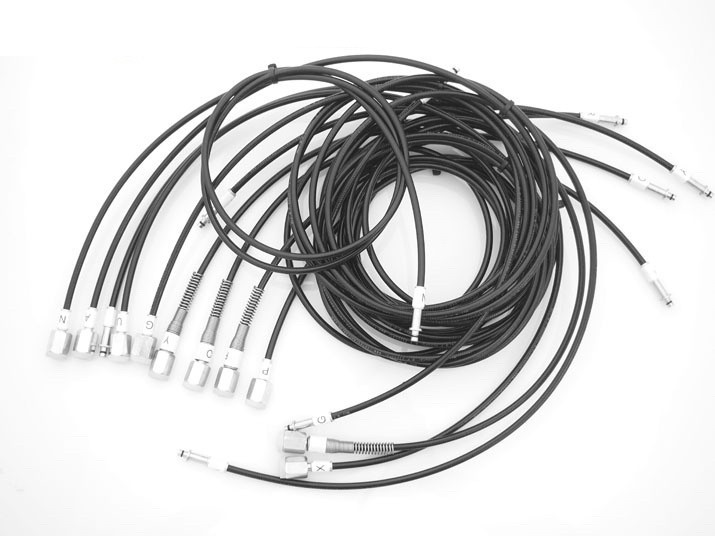

Full Set of Hydraulic Lines/Hoses





Full set of upgraded hydraulic lines. Manufactured in the USA by Top Hydraulics out of superior hose material, with plated fittings. Our burst pressure rating of over 23,200 psi is unmatched in the industry. These hoses are more flexible and have a smaller diameter than the original hoses, which makes them very easy to install.

Some vendors offer hoses made of braided brake lines, because it is much easier to manufacture the fittings for such hoses, and because less specialized equipment is needed to crimp fittings onto larger hoses. Starting out with a large ID already, brake lines are bulky and have a very limited pressure rating. In contrast, Top Hydraulics' hoses and fittings have been designed from the ground up for optimum performance, ease of installation, and durability. Smaller is better for high-pressure, low-flow hoses such as these in your cabriolet hydraulics.

The lines are clearly labeled on each end (telling you where they connect to). The hose material is sourced in Germany, the hoses are assembled in the US, and these hoses will not crumble apart like your original ones.


This set includes:

Hydraulic Hose X (P/N 8G0871794) Right Main Lift Cylinder Bottom to hydraulic pump

Hydraulic Hose W (P/N 8G0871794) Right Main Lift Cylinder Top to hydraulic pump

Hydraulic Hose N (P/N
8G0871608) Right 5th Bow Cylinder Bottom to hydraulic pump

Hydraulic Hose L (P/N 8G0871608) Right 5th Bow Cylinder Top to hydraulic pump

Hydraulic Hose U (P/N 8G0871620) Right Latch Bottom to hydraulic pump

Hydraulic Hose R (P/N 8G0871620) Right Latch Top to hydraulic pump

Hydraulic Hose T (P/N 8G0871609) Tonneau Cylinder Bottom to hydraulic pump

Hydraulic Hose S (P/N 8G0871609) Tonneau Cylinder Top to hydraulic pump

Hydraulic Hose Z (P/N 8G0871793) Left Main Lift Cylinder Bottom to hydraulic pump

Hydraulic Hose Y (P/N 8G0871793) Left Main Lift Cylinder Top to hydraulic pump

Hydraulic Hose O (P/N 8G0871607) Left 5th Bow Cylinder Bottom to hydraulic pump

Hydraulic Hose K (P/N 8G0871607) Left 5th Bow Cylinder Top to hydraulic pump

Hydraulic Hose V (P/N 8G0871619) Left Latch Bottom to hydraulic pump

Hydraulic Hose P (P/N 8G0871619) Left Latch Top to hydraulic pump

FedEx 2-Day Delivery

Most orders placed within the USA will ship via FedEx 2-Day Service.

FedEx Priority Overnight Service

Orders placed with FedEx Priority Overnight Service can typically ship same day as long as the order is received before 11AM Pacific Standard Time


FedEx International Priority

For Customs clearance, you must declare a value on the package you are sending us.  Please note: parcels with a declared value under US$750 enter the US without incurring taxes, duties or clearance fees. Considering that you are sending us broken parts for repair, it is most reasonable to declare a value under US$750. You can insure your parcel only up to the amount that has been declared as the value for customs, so your best insurance is good packaging. It is extremely rare that parts get lost on the way to us.

Please be sure to drain or cycle all fluid out of your parts, then wrap them in plastic, so that the parcel does not get soaked in oil. It is generally a good practice to double box pumps or sets of cylinders because heavy parcels take quite a beating in international transit unless you are using a premium carrier such as FedEx. Clearly, you don't want to just stick a part into a cardboard envelope without any further protection or buffering. Buffer your parcel well inside so that parts don't rattle around or the parcel gets crushed from others on top of it. Ideally, tape all around all surfaces of the parcel, which generally provides excellent protection against losing components that are trying to escape through small holes in the cardboard.

We use FedEx International Priority for almost all outbound international shipments, as they tend to offer the fastest and most secure service. Due to our shipping volumes, our rates for return shipping your parts via FedEx International Priority are typically equal to or cheaper than Postal Service. We cannot offer shipping labels for your shipment from you to us - you will have to shop around for the best option to ship your parts to us.

In the rare event that you feel you have to declare a value over US$750 on your parcel shipping to us, please understand that we will need to be reimbursed for any importation fees or duties incurred. You agree to this by accepting our terms and conditions when you place your order. On high value parcels, we are typically charged an Entry Prep Fee (currently  about $25) plus 2.5% tax on the declared value of the package, there are oftentimes delays in customs, and it can take a while for us to receive the actual customs invoice.

Depending on the parts you are sending us, your customs declaration might say "hydraulic cylinder for repair" or "hydraulic pump" for repair. Please note that DHL does not like to carry hydraulic parts or used car parts in some countries. If your carrier asks for the "harmonized code or tariff" of the parts you are shipping, those are 841221 for linear actuators (cylinders) and 841360 for pumps.

At Top Hydraulics, we pride ourselves on providing new and remanufactured parts with unmatched quality and longevity.

It is very rare that our parts fail. Obviously, we are only human and we could have made a mistake or one of our components might indeed have had a hidden defect. Please contact us first when you suspect that you have a warranty case, so that we can try to help right away. It could be that the failure you are experiencing is caused by a different component or that the installation was not quite proper, so we like to be in touch first to go over the situation with you.

Unless stated otherwise, there is a 3 year warranty on all new and remanufactured parts provided by Top Hydraulics.  This warranty is transferable. All parts manufactured or rebuilt by Top Hydraulics have unique markings, so there is no additional paperwork needed to transfer a warranty. The warranty does not cover labor, direct or consequential damages. The warranty is void when the parts have been abused or have been installed incorrectly, or when brake fluid or stop-leak additives have contaminated your hydraulic system..

You will have to send your failed part(s) back to Top Hydraulics for a warranty evaluation. In the extremely rare case of failure on rebuilds or new parts shipped or provided by Top Hydraulics, Top Hydraulics' warranty covers only parts and is limited to rebuilding the products previously shipped by Top Hydraulics, or replacing them, or refunding the rebuild fee at Top Hydraulics' discretion. If the failure was our fault, then we will refund reasonable shipping costs, as well.
