Full Set of Top Cylinders - BMW E46 3-Series
There are two options for placing your order:
1. (Most affordable) You send in your leaking cylinders, and Top Hydraulics rebuilds them.
- Top Hydraulics replaces & upgrades the seals in your cylinder with our superior proprietary material. Top Hydraulics' u-cup seals have a far more reliable seal and much longer service life. You get back cylinders that have been rebuilt to outlast and outperform OEM replacements.
OR
2. (Fastest) Core Exchange Option where Top Hydraulics ships the parts from our inventory first ($1100 plus a $600 deposit).
- Option 2 means that you get rebuilt & upgraded cylinders from Top Hydraulics' inventory first, then you ship back your original parts for credit of your $600 core refund. You get a set of cylinders that has been rebuilt to outlast and outperform OEM replacements.
No sales tax for orders in the USA
We provide world class technical support
3-year standard warranty (should last decades)
Please see removal instructions for all cylinders and the most frequently failing hydraulic lines in our DIY section: https://www.tophydraulics.com/content/7-diy-instructions.

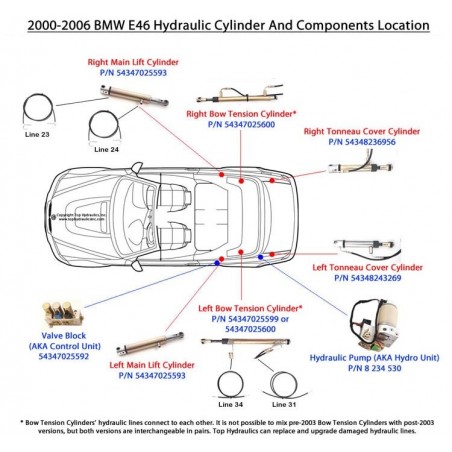

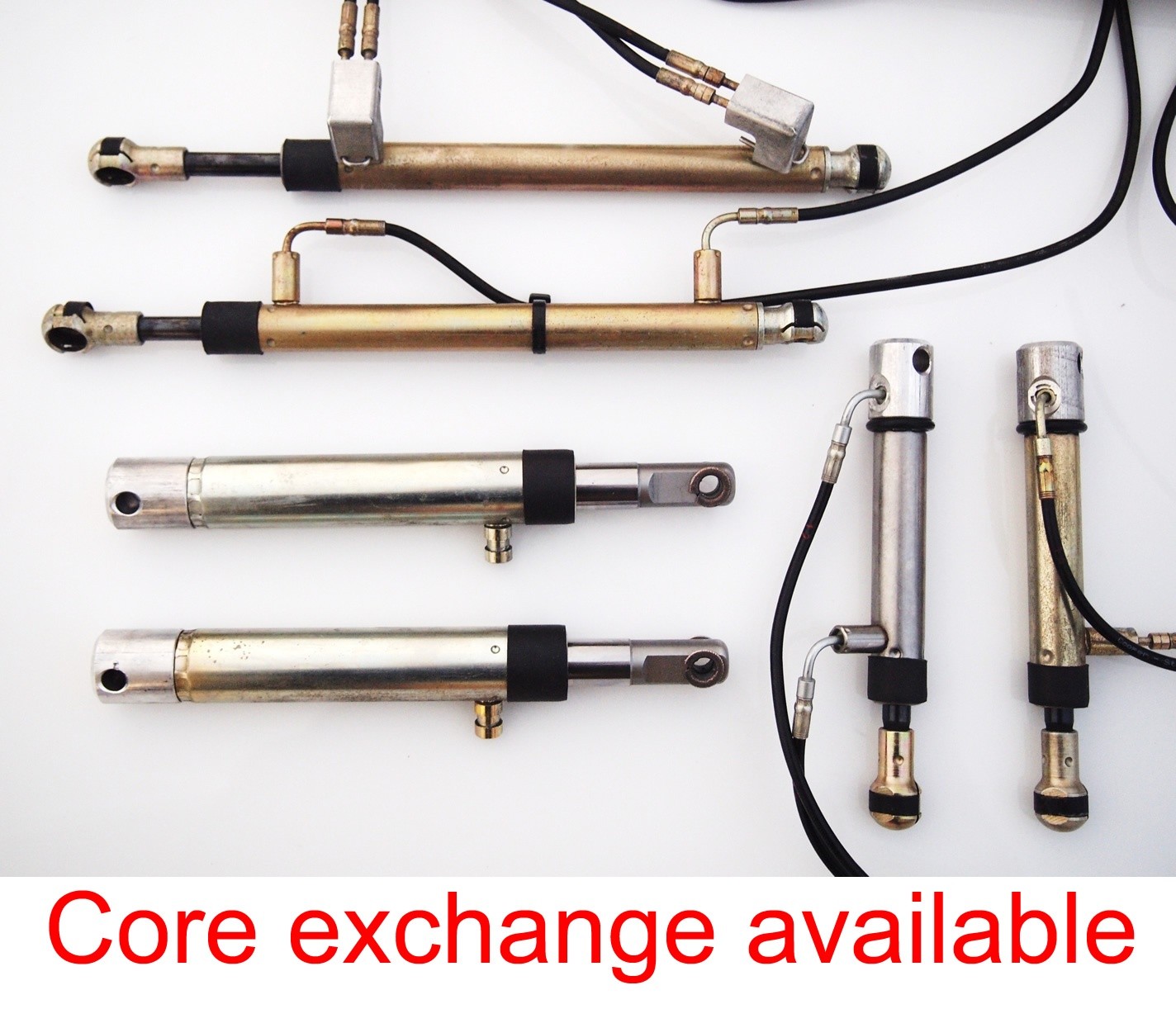

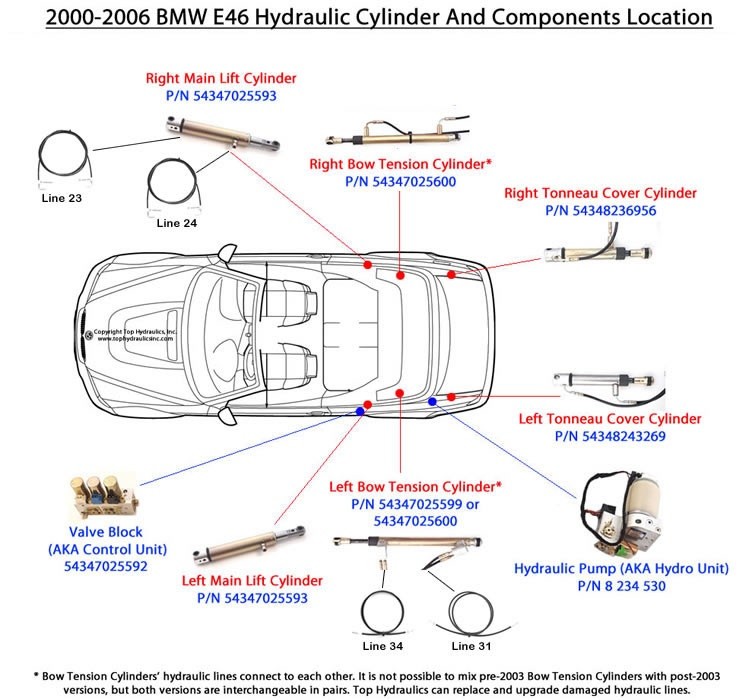

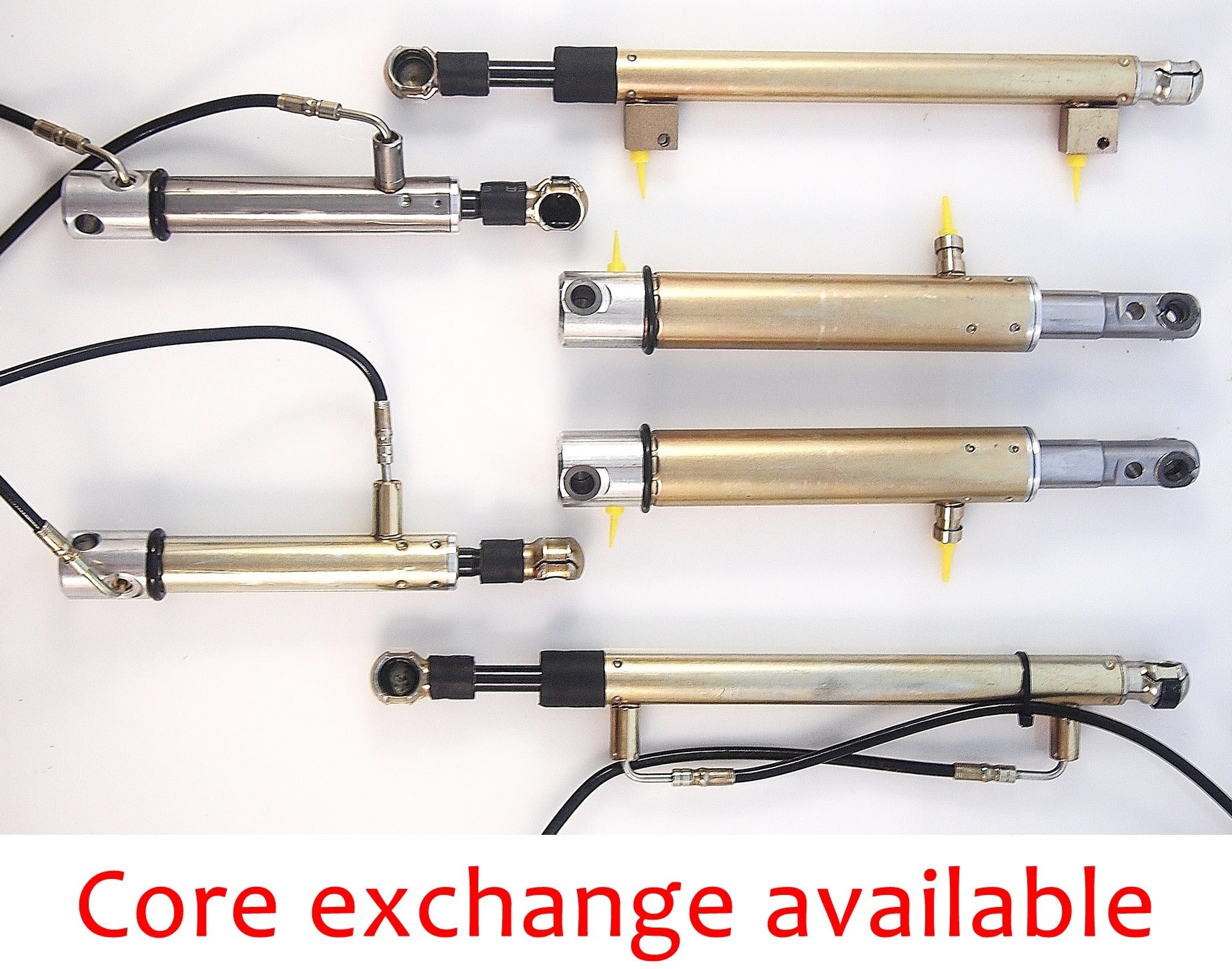

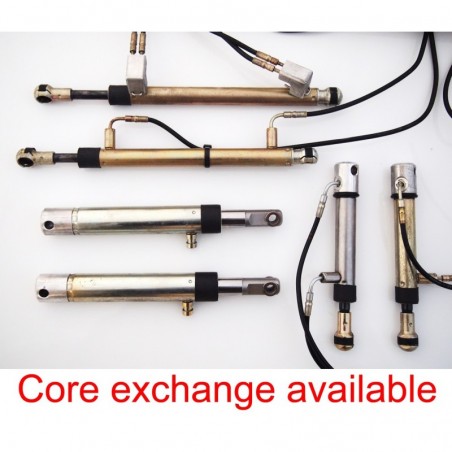

The E46 chassis has six cylinders, consisting of two main lift cylinders, two bow tension cylinders, and two case cover cylinders. Hydraulic lines on some cylinders do not have quick disconnects and must remain attached (tonneau cover cylinders and right bow tension cylinder).
Main lift cylinders: p/n 54347025593 (left and right)
Bow Tension Cylinders: p/n 54347025599 (left side) and 54347025600 (right side)
Tonneau Cover Cylinders: p/n 54348236956 (right side) and 54348243269 (left side)
Top Hydraulics return ships by USPS Priority Mail (inside the US; shipping $10 per order) or USPS Express Mail internationally.
The fine print: In the extremely rare case that your chromed cylinder shafts are rusty or deeply scratched, then there may be a surcharge for shaft replacement.
