F360 Spider 99-05 -- Right Rear Guard Cylinder Rebuild/Upgrade Service
  • F360 Spider 99-05 -- Right Rear Guard Cylinder Rebuild/Upgrade Service
  • Ferrari F360/F430 66454700 66454100 66454000 66453900 66453800 66454300 66454200 66376000

Right Rear Guard Cylinder - Ferrari F360 Spider


There are two options for placing your order:

1. (Most affordable) You send in your leaking Right Rear Guard Cylinder, and Top Hydraulics rebuilds it.

  • Top Hydraulics replaces & upgrades the seals in your cylinder with our superior proprietary material. Top Hydraulics' u-cup seals have a far more reliable seal and much longer service life. You get back a cylinder that has been rebuilt to outlast and outperform OEM replacements.


2. (Fastest) Core Exchange Option where Top Hydraulics ships the part from our inventory first ($350 plus a $200 deposit).

  • Option 2 means that you get a rebuilt & upgraded cylinder from Top Hydraulics' inventory first, then you ship back your original part for credit of your $200 core refund. You get a cylinder that has been rebuilt to outlast and outperform OEM replacements.
  • P/N: 66454300

Order Method:


No sales tax for orders in the USA


We provide world class technical support


3-year standard warranty (should last decades)

Ferrari F360 Spider | 1999-2005


Right Rear Guard Cylinder Rebuild/Upgrade Service

P/N: 66454300

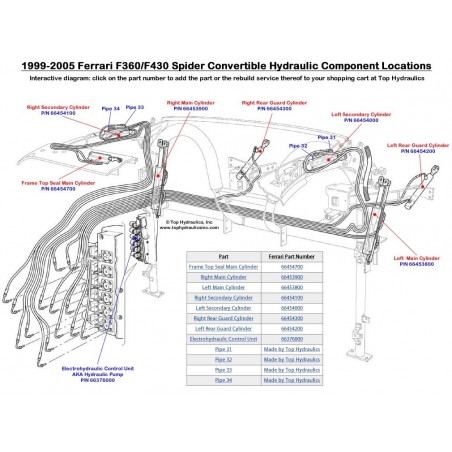

Model year '99-'05 F360/F430's have seven hydraulic cylinders for soft top actualtion and latching. Top Hydraulics upgrades the internal seals with far superior material, making your cylinders better than brand new ones.

Top Hydraulics replaces all seals in these cylinders. In particular, the port seals are replaced with special-shaped Viton seals, because the OEM seals do not hold up to the heat from the nearby engine.

Five of the cylinders have the hydraulic lines permanently attached, and they need to be sent in with the lines attached. If you have a cylinder with a cut hydraulic hose, then Top Hydraulics can replace the hose.

Two of the cylinders have removable lines (the Secondary Frame Top Seal Cylinders high up in the frame). Remove the clamps and send in these cylinders without the lines. Top Hydraulics will also replace the port seals (where the lines go in) on these cylinders p/n 66454000 and 66454100.

Please note that most cylinders fail in pairs, and that all seven cylinders will usually fail in a time frame of some 20% of the age of the first cylinder failing. That means, for example: if the first cylinder fails after ten years, then you are very likely to find the rest failing within some two years.

Note: in the unlikely event that there is rust on the black, polished cylinder shaft, there will be an additional $100 charge for replacing the cylinder shaft.
