New Hydraulic Line 12
  • New Hydraulic Line 12
  • 2098001172 2098000972 2098001272 2098000872 2098000772 2098000148

Hydraulic Line 14 - W209 CLK-Class

$149.99

New hydraulic line # 14 for Mercedes W209 CLK-Class

This is single hose that would normally be part of a set sold by Mercedes as p/n 209 800 02 81.

Goes from the pump to the bottom of the right main lift cylinder (top drive cylinder).

Top Hydraulics' hose material is more flexible than the OEM material and holds up to ten times the operating pressure in your convertible top hydraulic system.

Quantity



No sales tax for orders in the USA



We provide world class technical support



3-year standard warranty (should last decades)

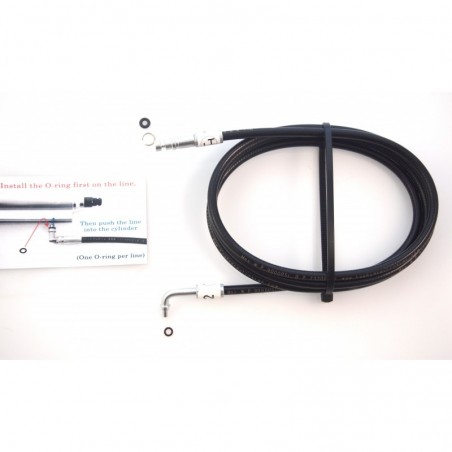

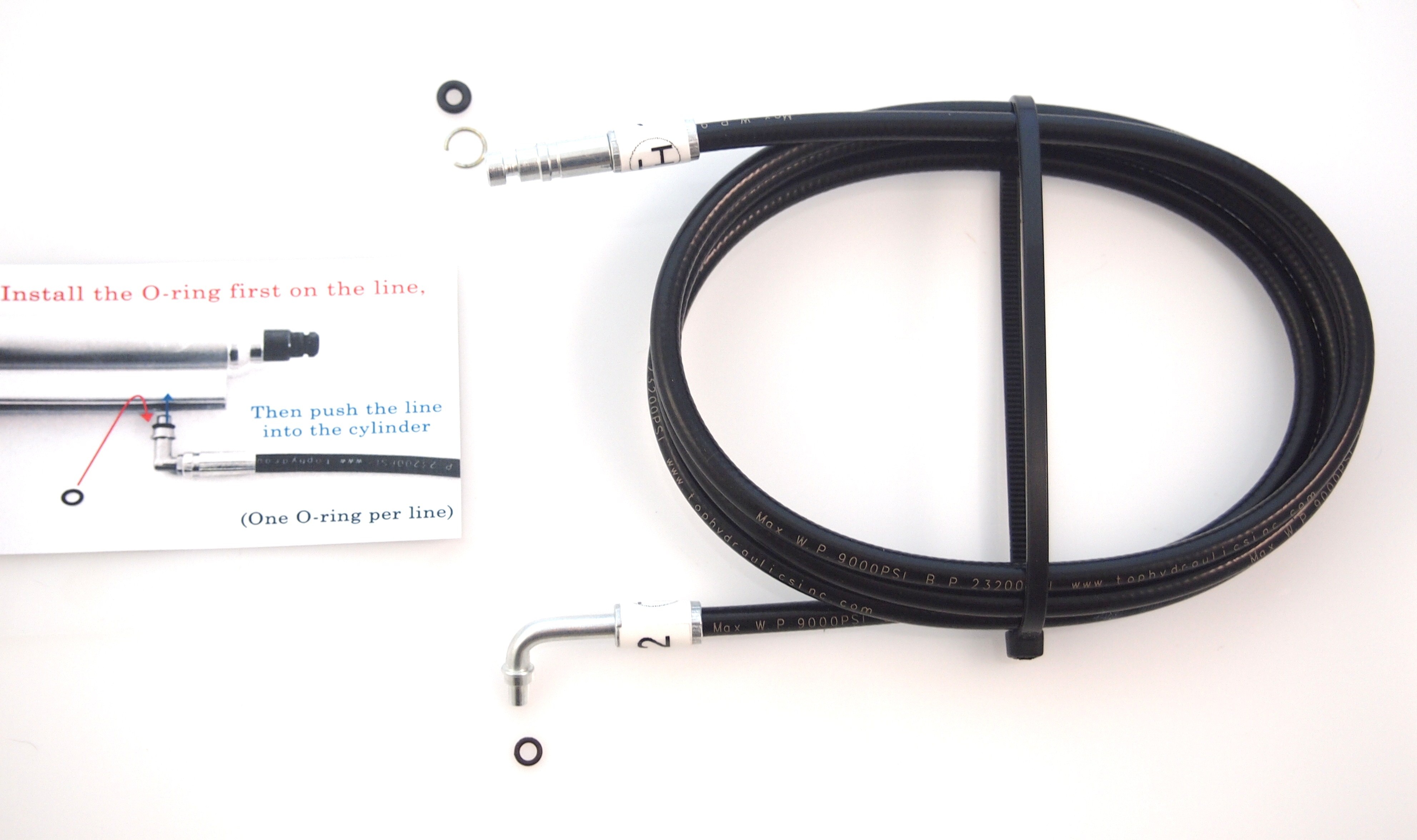

New hydraulic line # 14 for Mercedes W209 CLK-Class

Goes from the pump to the bottom of the right main lift cylinder (top drive cylinder) 2098000872. This is a single hose that would normally be part of a set sold by Mercedes as p/n 209 800 02 81.

Line comes with o-ring for each end and retaining clip for attachment to the hydraulic pump's manifold.

comes with snap ring installation tool for installation on the pump end

OEM hoses have very thin walls, which makes them fail easily. Top Hydraulics' hoses are 0.5 mm thicker, which makes them far superior without compromising ease of installation

For installation to cylinder hydraulic line port, first remove the old o-ring from the cylinder with a soft tool. Push new o-ring on the line before inserting line into the cylinder.

2098000281
