Full Set of Top Cylinders - R170 SLK-Class
Years: 1998-2003/2004
There are five hydraulic cylinders actuating the SLK convertible top and trunk lid. Top Hydraulics' rebuild makes these parts better than new inside, on account of the far superior seal material and seal geometry used. Of course, we are using cup seals where the shaft slides through when the cylinder shaft extends or retracts.
It is also important to replace all port seals, which is where the hoses go in. Please see our illustrations below (on the bottom of this listing) on how Top Hydraulics performs this intricate upgrade!
When considering the labor involved in removing one cylinder compared to a full set of cylinders, it is usually best to have all cylinders upgraded at the same time. The reason is, the majority of the labor involved is in removing access panels, and once the panels are removed, it is comparatively not much more work to remove all cylinders at once. Remember, the rebuild service for all cylinders at once costs less than one a single replacement cylinder from Mercedes, and you get a much better product from Top Hydraulics...
Download R170 SLK-Class Cylinder Removal Instructions (PDF)
Also see the link below for our very detailed DIY videos.
Top Hydraulics offers two options for upgrading cylinders for Mercedes convertible tops.
For Rebuilding Your Cylinders: Send your parts to Top Hydraulics first and we will rebuild and upgrade them to better-than-new condition.
To order with Core Exchange: Core deposit will be refunded in full if we receive your matching cores within 60 days, the cylinder rods are unscratched, and the hydraulic lines are intact. Core exchange (where Top Hydraulics ships rebuilt parts from its inventory first) is $150 more in the end, even after refund of the core deposit.
Seals used by Top Hydraulics, Inc. include Viton™ and Teflon™-hybrid seals, as well as enhanced Polyurethane material, which far exceed the OEM's requirements for rigidity, but provide at least double the service life for your convertible car top actuators, based on scientific test data.
Hydraulic lines must be intact and attached to the cylinder(s).

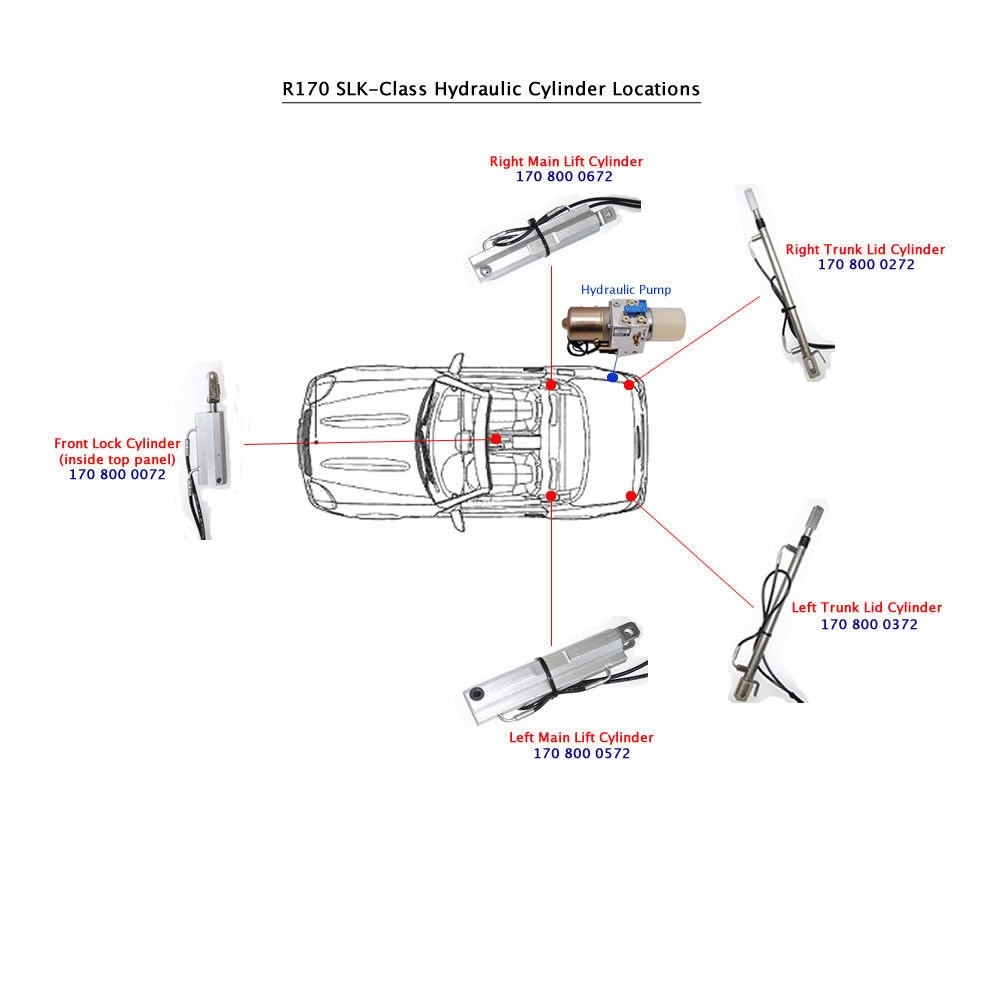

Mercedes part numbers for the five cylinders in the set:
A 170 800 00 72
A 170 800 02 72
A 170 800 03 72
A 170 800 05 72
A 170 800 06 72
Watch our DIY removal video on YouTube below!
About the port seals:
At the age of the original parts, it is essential that the port seals (where the hoses go into the cylinder housing) get replaced. Of course, we are replacing them with a far superior version. Replacing the port seals requires some fancy machining and extra parts:
-On the front lock cylinder, we machine out the crimps in the aluminum cylinder housing, create a clear mounting surface and tap holes for clips, then we re-fasten the hydraulic lines with laser-cut, stainless steel clips.
-On the main lift cylinders, we machine out the crimps in the aluminum cylinder housing, create a clear mounting surface and tap holes for clips, then we finally re-fasten the hydraulic lines with laser-cut, stainless steel clips.
-On the trunk lid cylinders, we machine out the crimps in the steel tubes that the hoses go into, cut a thread around the steel ports, then re-fasten the hoses with CNC-machined sleeves.
In the end, you get parts from us that are far better than new ones inside at a fraction of Mercedes' list price.
R170 SLK Cylinder Replacement
How to remove and replace your R170 Top Hydraulic Cylinders
FedEx 2-Day Delivery
Most orders placed within the USA will ship via FedEx 2-Day Service.
FedEx Priority Overnight Service
Orders placed with FedEx Priority Overnight Service can typically ship same day as long as the order is received before 11AM Pacific Standard Time
FedEx International Priority
For Customs clearance, you must declare a value on the package you are sending us. Please note: parcels with a declared value under US$750 enter the US without incurring taxes, duties or clearance fees. Considering that you are sending us broken parts for repair, it is most reasonable to declare a value under US$750. You can insure your parcel only up to the amount that has been declared as the value for customs, so your best insurance is good packaging. It is extremely rare that parts get lost on the way to us.
Please be sure to drain or cycle all fluid out of your parts, then wrap them in plastic, so that the parcel does not get soaked in oil. It is generally a good practice to double box pumps or sets of cylinders because heavy parcels take quite a beating in international transit unless you are using a premium carrier such as FedEx. Clearly, you don't want to just stick a part into a cardboard envelope without any further protection or buffering. Buffer your parcel well inside so that parts don't rattle around or the parcel gets crushed from others on top of it. Ideally, tape all around all surfaces of the parcel, which generally provides excellent protection against losing components that are trying to escape through small holes in the cardboard.
We use FedEx International Priority for almost all outbound international shipments, as they tend to offer the fastest and most secure service. Due to our shipping volumes, our rates for return shipping your parts via FedEx International Priority are typically equal to or cheaper than Postal Service. We cannot offer shipping labels for your shipment from you to us - you will have to shop around for the best option to ship your parts to us.
In the rare event that you feel you have to declare a value over US$750 on your parcel shipping to us, please understand that we will need to be reimbursed for any importation fees or duties incurred. You agree to this by accepting our terms and conditions when you place your order. On high value parcels, we are typically charged an Entry Prep Fee (currently about $25) plus 2.5% tax on the declared value of the package, there are oftentimes delays in customs, and it can take a while for us to receive the actual customs invoice.
Depending on the parts you are sending us, your customs declaration might say "hydraulic cylinder for repair" or "hydraulic pump" for repair. Please note that DHL does not like to carry hydraulic parts or used car parts in some countries. If your carrier asks for the "harmonized code or tariff" of the parts you are shipping, those are 841221 for linear actuators (cylinders) and 841360 for pumps.
At Top Hydraulics, we pride ourselves on providing new and remanufactured parts with unmatched quality and longevity.
It is very rare that our parts fail. Obviously, we are only human and we could have made a mistake or one of our components might indeed have had a hidden defect. Please contact us first when you suspect that you have a warranty case, so that we can try to help right away. It could be that the failure you are experiencing is caused by a different component or that the installation was not quite proper, so we like to be in touch first to go over the situation with you.
Unless stated otherwise, there is a 3 year warranty on all new and remanufactured parts provided by Top Hydraulics. This warranty is transferable. All parts manufactured or rebuilt by Top Hydraulics have unique markings, so there is no additional paperwork needed to transfer a warranty. The warranty does not cover labor, direct or consequential damages. The warranty is void when the parts have been abused or have been installed incorrectly, or when brake fluid or stop-leak additives have contaminated your hydraulic system..
You will have to send your failed part(s) back to Top Hydraulics for a warranty evaluation. In the extremely rare case of failure on rebuilds or new parts shipped or provided by Top Hydraulics, Top Hydraulics' warranty covers only parts and is limited to rebuilding the products previously shipped by Top Hydraulics, or replacing them, or refunding the rebuild fee at Top Hydraulics' discretion. If the failure was our fault, then we will refund reasonable shipping costs, as well.
